|Output Mode||VW/TC-Ni/TC-Ti/TC-SS/TCR Mode|
|Battery type||3* High-rate 18650 cell (discharging current should be above 25A)|
|Thread type||510 spring loaded thread|
0.05-1.5ohm for TC modes
0.1-3.5ohm for VW mode
|Temperature range||100-315°C/ 200-600°F (TC modes)|
1 x Reuleaux RX200S (no cells)
|Option Title||Black - Sold Out|

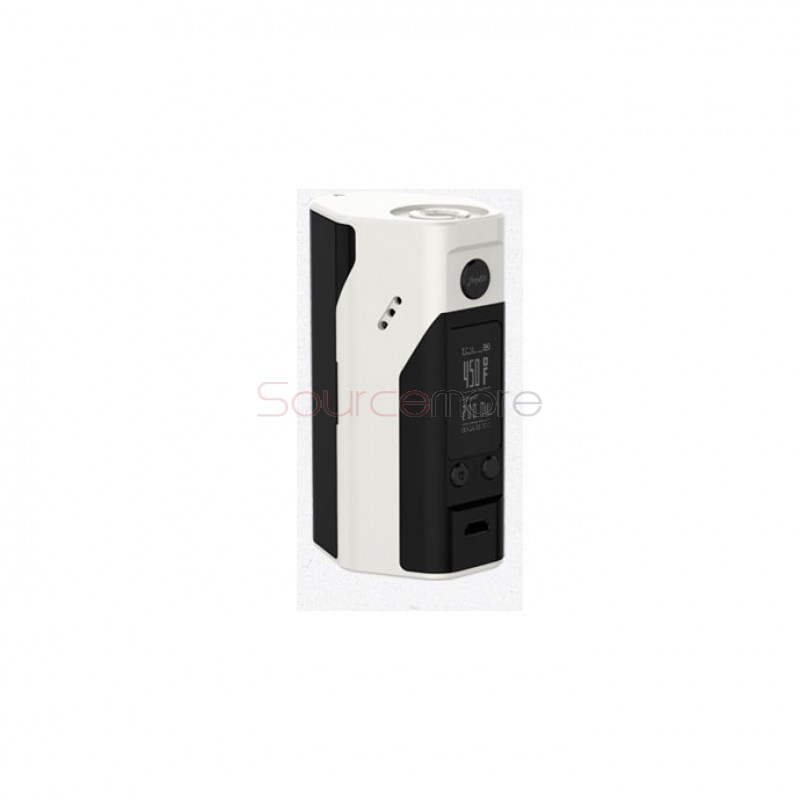

Both versions (the RX200 and RX200S) are high power, triple-18650-battery mods, with built-in Temperature Control for nickel, titanium, and stainless steel wire. Each has three additional menu options for TC (called M1, M2, and M3) that allow user-adjustable TCR values. Except for the screen cutout, the cases are identical on both mods and were created by the American designer JayBo. While fairly large (to accommodate three 18650 batteries) and heavy (even without batteries), the case design is remarkably efficient and ergonomic — comfortable to hold and natural for thumb-firing.
Wismec initially used the same case and setup for their DNA 200 mod, which incorporates Evolv’s high-end TC chip, but not too long afterwards released the RX200 model (and now the RX200S), substituting a simpler Joyetech chip for about one-third the price of their DNA 200 mod.
A mere two years ago, a 200+ watt mod would have been considered the vaping equivalent of a live hand grenade. Now, the marketplace is chock full of 200-watt mods and moving even higher, to 300 watts. No one vapes at 200 watts, much less 250, and 300 is downright ridiculous. Still, the triple 18650 battery configuration insures that you could if you wanted. (Many dual-18650 mods advertised as 200 watts don’t live up to those specs; both Wismecs do.)
The RX200 has been a hugely successful box mod in 2016, with its high power, versatility, ergonomics, and inexpensive price, but a single glaring flaw has marred its reputation (and Wismec’s). Because of the under-spec’d short length of the interior threading on some RX200 510 connectors, certain atomizers — most notably the SMOK TFV4, but others also — short-circuited when screwed down all the way on certain RX200 units and permanently damaged their chips.
On March 2nd of this year, Vaping360 published an article detailing the RX200’s 510 connector problems and Wismec’s subsequent response, which was to circle the corporate wagons and protect themselves by voiding the warranty in those cases [link to article].
Some vapers won’t like the RX200 or RX200S because of their size and weight. In fairness, however, they’re not much larger than many dual-18650 mods, and they’re very comfortable to hold. They are heavy, though.
0.3 mm x 1.8mm display screen
the actual display, not the screen cover
300° C maximum Centigrade temperature in TC mode
four case color combinations
all black, all white, black with red, or white with cyan
power output of 250W
increased from the original 200W by a firmware upgrade
to Version 3.10; available from the Wismec web site
1.1 x 2.2 mm display screen
more than twice as large
315° C maximum Centigrade temperature in TC mode
only a single case color combination
silver with gray
power output of 200W
which can be increased to 250W after Wismec releases
an initial firmware update, which is expected soon
While the screen is smaller on the RX200 and reads horizontally, I prefer it to the larger screen and “upright” orientation of the RX200s. The font on the original screen is clear and easily readable, whereas the new “improved” screen uses block lettering (like a 1920s German expressionist film) that may be stylish but is anything but user-friendly. In addition, I find menu navigation simpler and more intuitive on the older RX200. Finally, the new screen is considerably dimmer. Overall, the RX200S screen display aggravates me every time I have to look at it. The one feature I like about the new screen is the option of either a battery bar or a numerical percentage of remaining battery charge. That’s nice. I like seeing a precise percentage rather than a rough graphic approximation of the condition of my batteries, and that alone is almost enough to win me over to the new RX200S version.
The additional 15° upper limit of Celsius in temperature control mode is minor, and of no use at all to me, since I use TC in Fahrenheit, which has the same range in both mods (200°–600° F).
Also, I can’t discern any difference between the 510 connectors on the RX200s I own (I have three of them) and the RX200S I was sent for review. Wismec claims to have upgraded the connector, but mine all look the same, and none has much, if any springiness on the positive 510 pin. That said, I’ve never had a problem with any atomizer (including various SMOK tanks), so perhaps all my 510 connectors are the same because that’s how they were supposed to be in the first place.
Basically, the RX200S is simply an RX200 with a larger screen. With the exception of the ability to see an exact percentage of remaining battery charge, the choice comes down to one’s aesthetic preference.
The chip in both versions offers basic options for customizing temp control, especially with Wismec tweaking the TCR curves in firmware upgrades. Advanced users who insist on ultra-accurate temp control on all atomizer builds, however, should (and probably will) opt for a mod that uses more advanced adjustments for the TCR curves offered on the Evolv DNA-200 or top-of-the-line Yihi chips. For those vapers, the Wismec DNA-200 mod is clearly better. For the majority of users, temp control performance on the RX200/RX200S will be good enough to keep them happy.
My only real con is that those who buy either version — RX200 or RX200S — should probably acquire at least six high-drain 18650s that are kept dedicated to the mod and married in two trios. Keep the trios together when swapping out and recharging, and alternate the position of each battery in the bay. This adds considerable expense to the mod’s purchase, but it’s strongly advised. Many vapers may not do that, of course, but it’s the safest way to minimize potentially serious battery problems during use, and especially when recharging.
Much much better looking then older version, good price, probably the best buy mode under 45$, got two of them with LG HG2 batts and that combination works great with Griffin25 and Crius Plus 25
PS - aweosme new screen now, and great font
